0802SE Brushless Motors 19500kv (2022 Version)
0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.
Bullet Point
- 0802SE 19500KVBrushless Motors (2022 version) come with a completely new look. The whole motors are silver in the air, looking very bright.
- 0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time. With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.

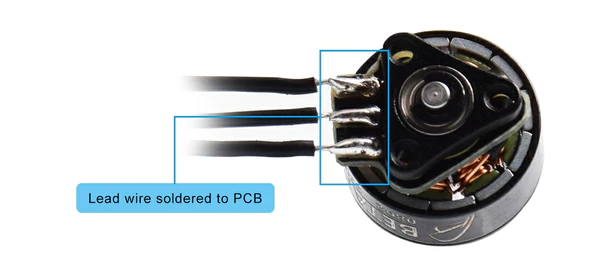

- Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.
Specification
- Item: 0802SE 19500KV brushless motor

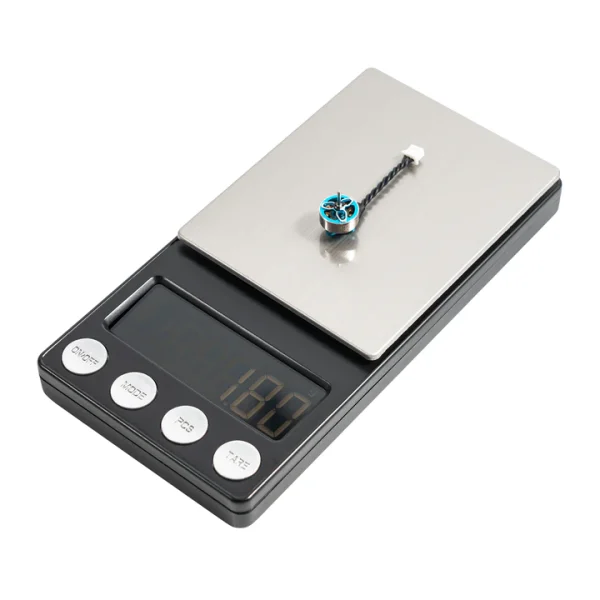

- Weight: 1.83g/pc (19500KV)
- KV: 19500KV
- Color: Black/Ice Blue
- Shaft length: 5mm
- Shaft diameter: 1mm
- Hole distance: 6.6mm
- Motor Mount Holes: M1.4
- Input Voltage: 1S
- Cables: 35mm long, 30AWG cables

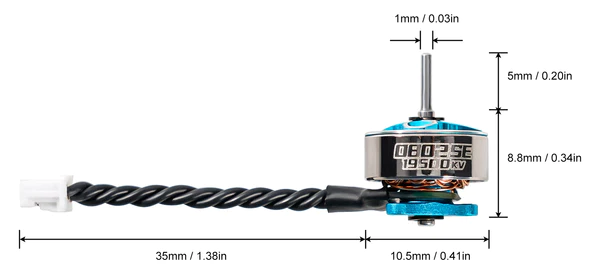

- Dimensions: 10.5*10.5*13.6mm, 10.5*10.5*13.8mm(2022 version)
- Bearings: Brass Bushings
19500KV or 23000KV Motors
Choose 0802SE 19500KV or 23000KV motors. The 0802SE 19500KV motors have a better performance in efficiency and flying endurance. With higher RPM (revolutions per minute), the 0802SE 23000KV requires less throttle for the stronger thrust that has a faster response time, improving the speed of the whoop drone, suitable for aggressive indoor FPV racing. For pilots who fly 65/75mm whoop drones with 19500KV motors, it is a good choice to upgrade motors to 23000KV.
0802SE Motor | 19500KV Brushless Motors | 23000KV Brushless Motors |
Weight | 1.83g/pc | 1.80g/pc |
Endurance | 4.5 mins (Meteor65 Pro) | 4 mins (Meteor65 Pro) |
Application | Cruising, Racing | More powerful for racing |
FC | BETAFPV F4 1S 5A Brushless FC | BETAFPV F4 1S 5A Brushless FC |
Recommended Parts
- Propellers: 31mm 3-blade, 31mm 4-blade, 35mm 3-blade, 40mm 2-blade
- Frame: Meteor65 frame, Meteor65 Pro frame, Meteor75 frame
- FC: BETAFPV F4 1S 5A Brushless FC
- Battery: 1S Battery

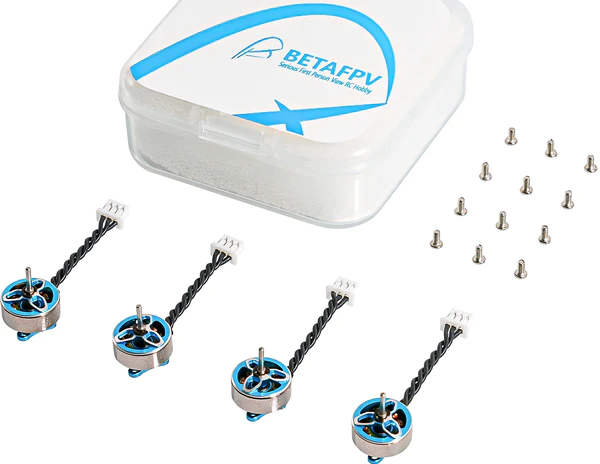

Package

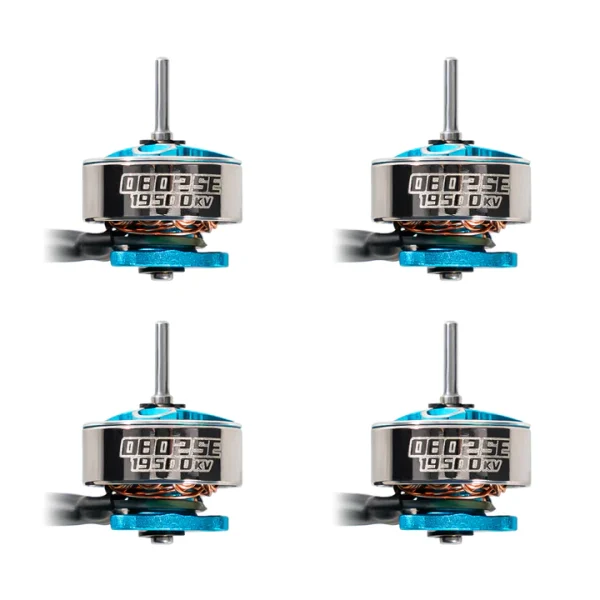

- 4 * BETAFPV 0802SE Brushless Motors (19500KV or 23000KV)
- 1 * Pack of M1.4*3 Screws
